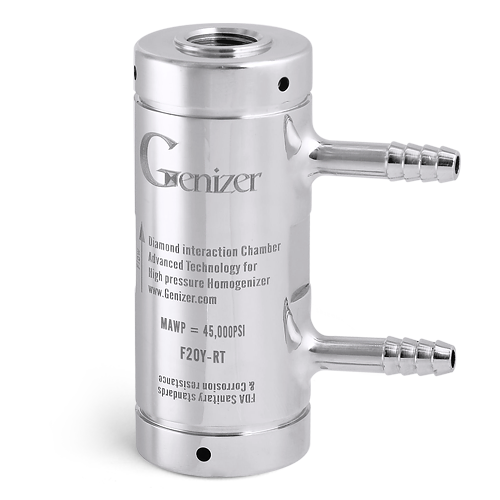

Z-Type Diamond Interaction Chamber

Z-Type Diamond Compatible Interaction Chamber up to 45,000psi. Warranty: 1 year.
Catalog Number: Cat.Z-DIXC
$6,000.00   Login for Discount
    Please select the information you wantX
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • How to Use
  • FAQ and Tips
  • How to Order
Z-Type Diamond Interaction Chamber (DIXC) is used to produce uniform nanoparticles in high pressure homogenizer. The fixed geometry within the Z-Type DIXC is to create a uniform processing profile and all materials will be processed with equal disruptive forces. Single slotted Interaction Chambers have a single microchannel and are ideal choices for small batches research, while the multi-slotted interaction chamber comprises multiple microchannels in parallel, which can be used at industrial scales, by increasing the flow rate through the DIXC but with equal processing forces.
Nanoemulsion, Cell Disruption, Nanodispersion, Deagglomeration, Liposome
Full replacement for the chamber of Microfluidizer processors
Electro polishing and inner passivation for pharmaceutical application
Real-time cooling option to reduce oversized particles
Lower cost and higher quality
Description Z-type Diamond Interaction Chamber Single-Slotted, Multi-Slotted
Brand GenizerTM with High Quality
Compatibility for Microfluidizer and Avestin, PSI Single-Slotted: M-110Y, M-110P, M-110L, M-110S and M-110EH, PSI-20
Multi-Slotted: M-7115, M-7145, M-7250, M210, M610, PSI-40
W × D × H
35mm × 35mm × 85mm (Single-Slotted)
45mm × 45mm × 200mm (Multi-Slotted)
× 95mm × 300mm (9/16" F9/16" M Multi-Slotted)
Weight 1 lbs. (0.5kg) (Single-Slotted)
3 lbs. (1.5kg) (Multi-Slotted)
15 lbs. (7.0kg) (M610)
Cleaning Flush to clean
Sterilizing Whole unit Autoclavable
Pressure Range 20,000psi; 30,000 psi; 45,000 psi
Chamber Type Available G10Z, H10Z, H210Z, H30Z, H230Z, L10Z,
L210Z, L30Z, Q50Z, T60Z, T250Z
Standard Features
Chamber Type Z-type Diamond Interaction Chamber:
G10Z, H10Z, H210Z, H30Z, H230Z, L10Z, L210Z, L30Z, Q50Z, T60Z, T250Z
Max. Pressure 30,000psi
Product material 316L stainless steel, Diamond
Polishing Condition Electro-Polish and Passivation for pharmaceuticals
Warranty 1 year against any manufacturing defects
Option Features
Chamber Type Z-type Diamond Interaction Chamber:
H10Z, G10Z, H30Z, H210Z, H230Z, Q50Z, T50Z, T60Z, APM
Diamond auxiliary processing modules (APM)
Customer Made Customerized Laser mark, Customerized dimensions and fittings
Max. Pressure 45,000psi
Product material Titanium (Resistant to strong acid and base)
Product Cooling Real Time cooling on Chamber
Upgrade to Z-type Diamond Interaction Chamber
Upgrade used G10Z or H30Z chamber to G10Z-RT or H30Z-RT diamond chamber with real-time cooling function. Promotion available for a limited time.
Original Chamber Upgrade to Brand New Price
G10Z or H30Z Diamond Single-Slotted Chamber G10Z-RT or H30Z-RT Diamond Chamber Quote
G10Z or H30Z Ceramic Single-Slotted G10Z-RT or H30Z-RT Diamond Chamber Quote
G10Z or H30Z Multi-Slotted Chamber G10Z-RT or H30Z-RT Multi-Slotted Diamond Chamber Quote
1) Remain 2-3 threads in the high pressure fittings

High Pressure Fitting

2) For maximizing the stablilty of the nanosize or bioactivity, Please select RT chambers
Is this compatible with Microfluidizer?
The all chambers are compatible with any type of Microfludizer.

What is the matertial of chambers?
All chambers are Diamond interaction chambers instead of Ceramic.

What if the chambers blocking?
By flow reverse the chamber, the blocking can be sloved. By the way, Genizer's high pressure homogenizers have unique anti-blocking system which can minimize the most blocking of the chambers.

How to confirm chamber's connection size?
For those Y-TYPE Diamond Interaction Chambers with female openings, its tubing connection size could be 1/4" or 1/8".

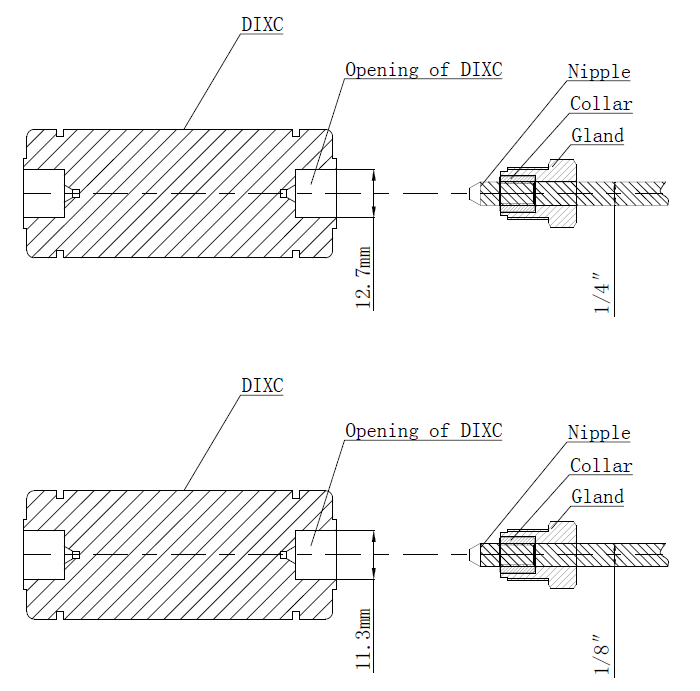

Here is the drawing of DIXC's female opening details corresponding with its tubing size:

And for those Y-TYPE Diamond Interaction Chambers with male connections, its tubing connection size could be 9/16" or 3/8".

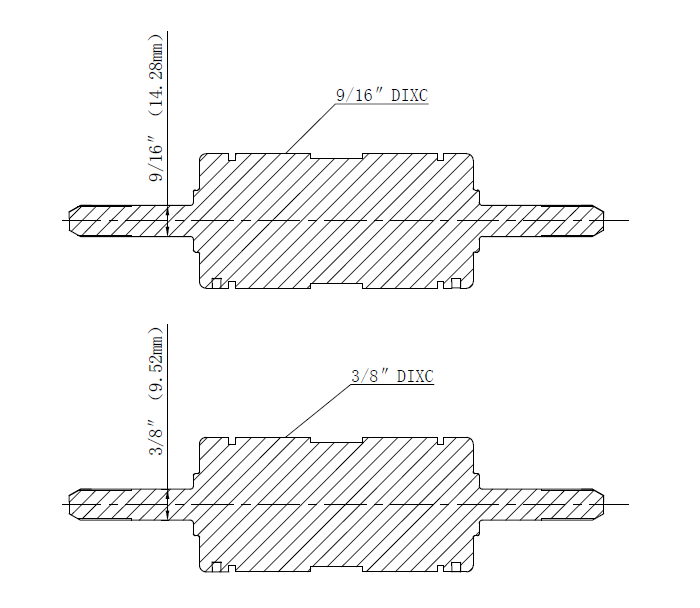

Here is the drawing of DIXC's male connection details corresponding with its tubing size:

1. Order the unit from your Local Agent (Recommended)

2. Add the item into Cart and get the online quote from our website and confirm the order and payment accordingly (Recommended and Economical)

3. Email us to get the quote

4. Order and pay online from the website
